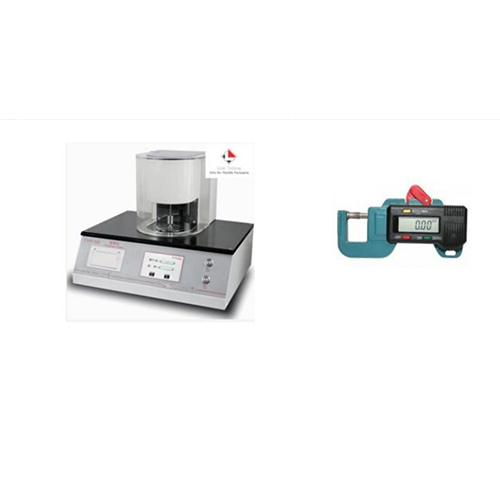

Send InquiryCHY-HS (Film Pepar ) Thickness Tester
MOQ : 1 Piece
CHY-HS (Film Pepar ) Thickness Tester Specification
- Temperature
- 15C - 35C
- Interface Type
- RS232 / USB
- Test Range
- 0-2 mm / 0-5 mm (optional)
- Port Size
- Standard 6 mm Air Port
- Power Supply
- AC 220V 10%, 50Hz
- Response Time
- <1 second
- Humidity
- 20% - 70% RH (non-condensing)
- Gas Pressure
- 0.5 MPa (filtered & dried air)
- Max Height
- Approx. 25 mm
- Hardness
- Measuring head: Stainless steel (customizable)
- Operating Voltage
- 220V AC
- Number of Specimens
- 1 Specimen / Test
- Specimen Size
- 50 mm x 50 mm, 100 mm x 100 mm
- Display Type
- Digital LCD
- Frequency
- 50Hz
- Equipment Type
- Film / Paper Thickness Tester
- Resolution
- 0.1 m
- Application
- Thickness measurement of film, paper, foils, and flexible materials
- Measuring Range
- 0.001 mm-2 mm (film), up to 5 mm (paper)
- Accuracy
- 0.1 m
- Features
- Auto-calibration, Data storage, Rapid measurement, Digital display
- Automation Grade
- Automatic
- Mounting Type
- Benchtop
- Usage
- Thickness measurement
- Capacity
- Standard / High Precision modes available
- Machine Weight
- About 35 kg
- Test Speed
- 1-3 mm/s
- Test Width
- Up to 100 mm
- Test Stroke
- 0-25 mm
- Control Mode
- Automatic / Digital
- Output Data Format
- Digital / Print (optional)
- Compliance Standard
- Conforms to GB/T 6672, ISO 4593, ASTM D645
- Power Consumption
- <150 W
- Alarm System
- Overload / error indication
- Data Storage Capacity
- Up to 300 test records
- Foot Material
- Anodized aluminum / Stainless steel
- Calibrated Mass
- Standard 1N (or customizable weight)
- Sample Placement Method
- Horizontal, with pressure foot
- Operating Environment
- No corrosive gas, vibration, or strong electromagnetic fields
CHY-HS (Film Pepar ) Thickness Tester Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 50 Pieces Per Month
- Delivery Time
- 2-10 Days
- Main Export Market(s)
- Asia
