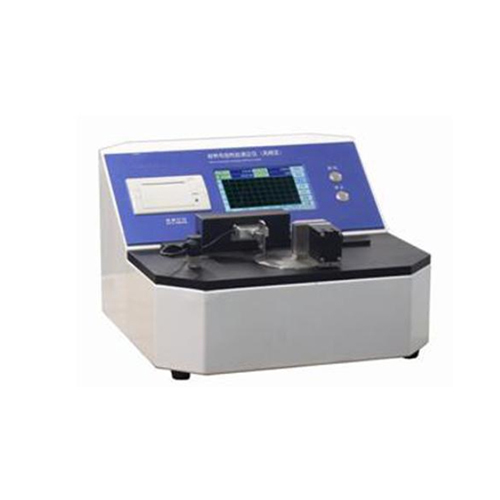

Send InquiryLTTD-10S Microcomputer Bending Stiffness Tester
MOQ : 1 Piece
LTTD-10S Microcomputer Bending Stiffness Tester Specification
- Number of Specimens
- Single or multiple
- Mounting Type
- Benchtop
- Resolution
- 0.1 mN
- Response Time
- 2 Seconds
- Interface Type
- RS232 / USB
- Display Type
- LCD Digital Display
- Test Range
- 0-5000 mN
- Specimen Size
- 70 mm 38 mm
- Equipment Type
- Bending Stiffness Tester
- Automation Grade
- Automatic
- Measuring Range
- 0-5000 mN
- Frequency
- 50 Hz
- Temperature
- 15-35C
- Operating Voltage
- 220V
- Application
- Testing bending stiffness of paper, cardboard, film, aluminum foil, and related materials
- Max Height
- 120 mm stroke
- Humidity
- 85% RH
- Power Supply
- AC 220V 10% 50Hz
- Features
- Automatic data processing, real-time display, data storage, and printout
- Gas Pressure
- 0.4-0.6 MPa
- Port Size
- 6 mm (air input)
- Accuracy
- 1% F.S. (Full Scale)
- Usage
- Laboratory and industrial quality control
- Capacity
- 10S (Microcomputer controlled system)
- Machine Weight
- 35 kg
- Test Speed
- 100 mm/min
- Test Width
- 38 mm
- Test Stroke
- 120 mm
- Control Mode
- Microcomputer control
- Compliance Standards
- ISO 2493, GB/T 2679.3
- Calibration Method
- Auto and manual calibration
- Software Support
- Compatible with Windows OS, comes with dedicated analysis software
- Data Output
- USB/RS232 export and print
- Sampling Interval
- User configurable
- Noise Level
- <65 dB
- Test Principle
- Horizontal cantilever beam method
- Safety Devices
- Emergency stop, overload protection
- Memory
- Stores up to 500 test results
LTTD-10S Microcomputer Bending Stiffness Tester Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 50 Pieces Per Month
- Delivery Time
- 2-10 Days
- Main Export Market(s)
- Asia
