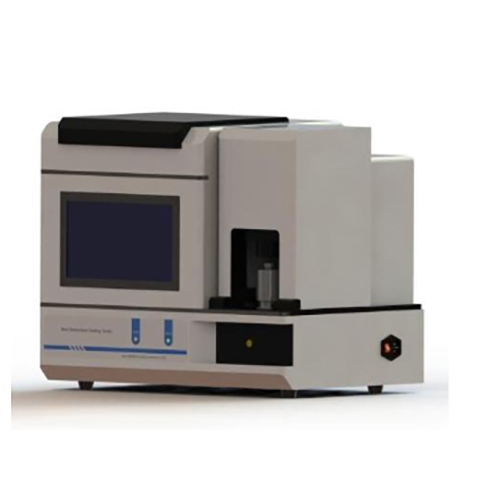

Send InquiryNDL-V301 Micro Leakage Sealing Tester
MOQ : 1 Piece
NDL-V301 Micro Leakage Sealing Tester Specification
- Accuracy
- 0.5% F.S.
- Automation Grade
- Automatic
- Specimen Size
- Within 300 mm
- Operating Voltage
- 220 V
- Gas Pressure
- 0.7 MPa (Max)
- Frequency
- 50 Hz
- Max Height
- 400 mm
- Humidity
- 85% RH
- Number of Specimens
- 1
- Measuring Range
- 0.1-600 kPa
- Application
- Leakage/sealing test for flexible package, bottles, caps, valves
- Mounting Type
- Benchtop
- Resolution
- 0.1 kPa
- Power Supply
- AC 220V 50Hz
- Test Range
- 0-600 kPa
- Port Size
- 8 mm
- Display Type
- Digital LCD
- Features
- Automatic operation, user-selectable test modes, data storage
- Equipment Type
- Micro Leakage Sealing Tester
- Response Time
- 2 s
- Temperature
- Room temperature (10-40C)
- Interface Type
- RS232 (optional)
- Usage
- For lab quality control testing
- Capacity
- Standard
- Machine Weight
- 32 kg
- Test Speed
- Adjustable (5-300 mm/min)
- Test Width
- 230 mm
- Test Stroke
- 0-300 mm
- Control Mode
- Microcomputer control
- Test Mode
- Leakage, Bursting, Sealing
- Test Method
- Positive Pressure Gas Method
- Ambient Conditions
- Non-corrosive, dust-free environment
- Alarm System
- Automatic leak and burst detection
- Sample Holder
- Universal clamping
- Test Medium
- Dry compressed air
- Language Support
- English/Chinese
- Dimensions
- 480 x 320 x 220 mm
- Compliance
- GB/T 15171, ASTM F1140, ASTM F2054
- Data Output
- RS232, Printer (optional)
- Data Storage
- Up to 50 groups
NDL-V301 Micro Leakage Sealing Tester Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 50 Pieces Per Month
- Delivery Time
- 2-10 Days
- Main Export Market(s)
- Asia
