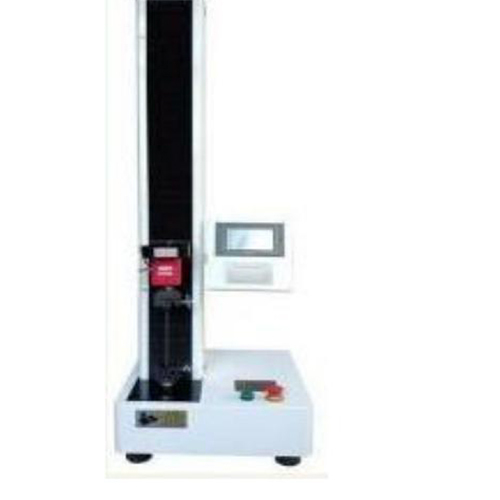

Send InquiryLTS- 05 Tensile Tester
MOQ : 1 Piece
LTS- 05 Tensile Tester Specification
- Temperature
- 15C~40C
- Max Height
- 1200 mm
- Display Type
- Digital LCD
- Operating Voltage
- 220~240 V
- Accuracy
- 1%
- Port Size
- Standard USB
- Humidity
- 85% RH
- Interface Type
- USB
- Resolution
- 0.01 N
- Measuring Range
- 0~5000 N
- Test Range
- 0~5000 N
- Features
- Microprocessor control, Overload protection, Automatic data management
- Automation Grade
- Semi-Automatic
- Power Supply
- 230 V AC, 50 Hz
- Response Time
- Instantaneous
- Equipment Type
- Tensile Tester
- Number of Specimens
- 1
- Specimen Size
- Up to 300 mm length
- Frequency
- 50 Hz
- Application
- Tensile strength testing of rubber, plastics, wire, cable, textile, and other materials
- Mounting Type
- Floor mounted
- Usage
- Industrial/Quality Control Laboratory
- Capacity
- 5 kN
- Machine Weight
- 120 kg
- Test Speed
- 50~500 mm/min (Adjustable)
- Test Width
- Up to 30 mm
- Test Stroke
- 600 mm (Max.)
- Control Mode
- Digital Microprocessor Control
- Software Support
- PC Software for Data Acquisition and Analysis
- Extension Measurement
- Included digital extensometer
- Testing Standards
- ASTM, ISO, JIS compliant
- Data Output
- USB and Printer
- Model
- LTS-05
- Motor Type
- Stepper Motor
- Jaw Opening
- 35 mm
- Frame Construction
- Powder Coated Mild Steel
- Load Cell
- High Precision, Interchangeable
- Safety Feature
- Emergency Stop Button
LTS- 05 Tensile Tester Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 50 Pieces Per Month
- Delivery Time
- 2-10 Days
- Main Export Market(s)
- Asia
