Free falling dart impact tester LTMC-AB

Get a Price/Quote

MOQ : 1 Piece

Free falling dart impact tester LTMC-AB Specification

Features
High repeatability, safety enclosure, quick dart change

Application
Plastic films, flexible packaging, laminates

Frequency
50 Hz

Operating Voltage
220V AC

Resolution
1 g

Measuring Range
50 g - 2000 g

Number of Specimens
1 per test cycle

Power Supply
AC 220V, 50 Hz

Display Type
Digital display

Equipment Type
Free falling dart impact tester

Gas Pressure
0.6-0.8 MPa (for pneumatic variants)

Response Time
Instantaneous on impact

Mounting Type
Floor standing

Test Range
50 g to 2000 g dart weights

Humidity
85% RH

Specimen Size
Max 400 x 400 mm

Port Size
Standard - optional customization

Automation Grade
Semi-automatic / manual

Hardness
Dart: Hardened steel, 60 HRC

Temperature
15 ~ 35C

Accuracy
1 g

Max Height
2500 mm

Interface Type
Manual, optional USB/RS232 for data output

Usage
Impact resistance testing

Capacity
Darts up to 2 kg

Machine Weight
Approx. 80 kg

Test Speed
Free fall under gravity

Test Width
Up to 400 mm

Test Stroke
Up to 2500 mm

Control Mode
Manual and automatic options

Drop Height Adjustable
300 to 1500 mm

Accessories
Changeable dart heads, sample clamps, calibration weights

Safety Features
Interlock guards, emergency stop button

Air Source (for pneumatic)
Filtered, oil-free compressed air

Compliance Standards
ASTM D1709, ISO 7765-1

Data Output
Optional printer/PC connectivity

Operating Noise Level
<65 dB(A)

Impact Energy Range
Up to 30 Joules

Finish
Powder-coated steel body

Free falling dart impact tester LTMC-AB Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
50 Pieces Per Month

Delivery Time
2-10 Days

Main Export Market(s)
Asia

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Medical Packaging Testers Category

LTXGY-03S Auto Torque Tester

Minimum Order Quantity : 1 Piece

Material : Mild steel

Dimension (L*W*H) : 375mm460mm700mm Millimeter (mm)

Weight : 36 Kilograms (kg)

Resolution : 0.001Nm

Frequency : 50 Hertz (HZ)

Get a Price/Quote

NPD-1000S Fully-Automatic Bursting Strength Tester

Minimum Order Quantity : 1 Piece

Material : Mild steel

Dimension (L*W*H) : 400mm350mm500mm Millimeter (mm)

Weight : 33 Kilograms (kg)

Resolution : 0.01KPa

Frequency : 50 Hertz (HZ)

Get a Price/Quote

Elmendorf Tearing Tester LTLD-1000Z

Minimum Order Quantity : 1 Piece

Get a Price/Quote

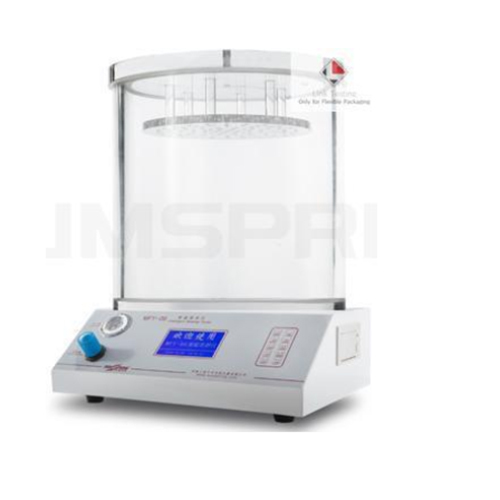

LTY-01 Leak Tester
